Hot Popular Goldensign PVC Extruded Rigid Foam Sheet

High quality pvc foam sheet
Place of Origin: Shanghai, China (Mainland)
Brand Name: Goldensign
Thickness: 1mm~40mm
Material: PVC
Thickness: 1~40mm
Certification: SGS / ROHS
Width: 1,1.22,1.56,2.05m etc
Length: as your required
Color: as your required
Size:1.22*2.44m etc.
Model Number: GSPVC
Density: 0.45~1.0g/cm3
Size:
Thickness:
Density:
Material:
Color:
Application:
Surface treatment:
Availability:
Quantity:
  • GS Rigid PVC Sheet

  • Goldensign

Product Description

More products-1

PVC Rigid sheet (PVC solid sheet)

Construction materials for chemical tank and equipment engineering,eg.PCB equipment,Semiconductor processing equipment,Etching and plating tanks,machined and fabricated parts,industrial engineering and so on.


Project Index
Tensile-strenghth(MPa) ≥12
Shao hardness D ≥55
Charpy notched impact strength ≥14
Elongation at break(%) ≥15
Heating size change ratio(%) ≥12
Vicat softening point(%) ±2.0
Water absorption(%) < 1.5
Softening point(℃) ≥73
Flexural strength(Mpa) ≥25
Tensile modulus of elasticity(%) ~800
Bending intensity(MPA) 12-18
Fire resistance Self-Extinguishing less than 5 seconds


Specification

                                                                                                          Standard size
Width 1/1.22/1.3/1.5m
Length as your request
Thickness 1-30mm
Density 1.4-1.6g/cm3
Color white, grey, black


photobank (1)的副本


photobank的副本



Application





              Application

Machining; Cutting, sawing, turning, drilling, planing, milling, grinding & screwing.
Forming; Stretch forming, therm-forming, vacuum forming, blow molding, bending, folding & punching.
Welding; Hot-gas, heated-tool & folding.
Environmental protection, chemical industry, metallurgy of rare metals, extraction work of rare earth, water treatment,construction industry and bridge-building industry.

PVC用途

Features
Features:
1.Excellent chemical and corrosion resistance
2.Excellent impact strength
3.Excellent formability
4.Low flammability
5.High rigidity and superior strengh
6.Reliable electrical insulation
7.Safe, innocuous for man's body
8.easy to clean and maintain.
9.tough, rigid with a high impact strength.
10.non-absorb water, fire retardant and self-extinguishing

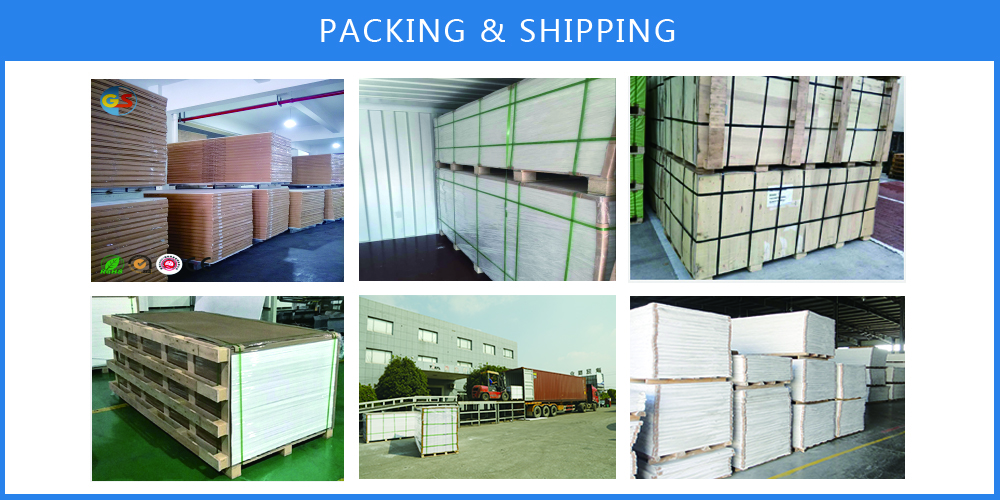

Packaging & Shipping

Packaging:

1.Pallet with PE Film, packing belt, etc, 1.5-2tons/Pallet; 10-12pallets/20GP.

2.Or according to customers' requirements.

Customized Logo PE film

Customized Logo PE film


PE blue film

PE blue film

Without wooden pallets

non-fumigation pallet


With wooden pallet

non-fumigation pallet



Factory
Production Line
Company Information

Company View

展会

FAQ

* 1, Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 17 years experience in this field.
* 2, Q: How can i get the sample?
A: Small samples available are free, just freight collect.
* 3, Q: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* 4, Q: What is your MOQ?
A: MOQ is 2 tons/order. Each size, thickness.
* 5, Q: What colors can you make?
A: The white color is most popular. And we can customize special color according to your requirement.
* 6, Q: Can we have our Logo or company name to be printed on your package?
A: Sure. Your Logo can be putted on the package by printing or sticker.
* 7, Q: What is your lead time for mass production?
A: Normally 15-30 days, depends on the size, quantity and season.
* 8, Q: What is your payment term?
A: T/T, L/C, D/P
* 9, Q: How do you pack it?
A: Each sheet covered by PE film or craft paper, around 1.5 tons packed in a wood pallet.
