PVC Foam Board Warping: What to Check Before Changing the Specification
A PVC foam board that looks flat on delivery may behave differently after storage or installation. When a panel bows, the first response is often to order something thicker.
Before doing that, find out when the shape changed.
From a manufacturer’s perspective, a useful assessment starts with the sheet condition, the way it was supported and the conditions in which it was used. Thickness belongs in that discussion, but it cannot answer every question.
Start with an incoming inspection
Check a selection of sheets before cutting, bonding or fitting them. Place each sheet on a clean, flat reference surface without clamps pulling it down. Record the batch, dimensions and any visible bow.
Take photographs that show the whole sheet as well as the affected area. A close-up of one raised corner gives the supplier less information than a view showing the panel and its support.
This also creates a useful record for your own team. If the board was already uneven when unpacked, report it before processing. If it changed later, record what happened between those two points.
Give stored sheets proper support

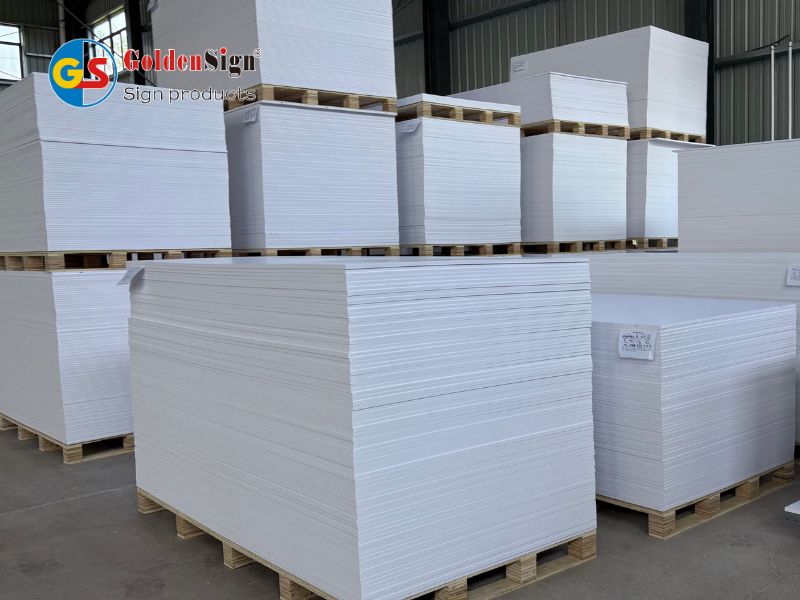

Store PVC foam board horizontally on a flat support that accommodates the sheet size. Avoid leaving part of the stack hanging beyond the pallet.
Palram’s handling guidance recommends horizontal storage for flat sheets, while its foam PVC troubleshooting guidance calls for full support during storage. That is a practical detail worth checking in a busy warehouse.
Make the support arrangement part of the receiving procedure. Who checks the pallet after unloading? Where do opened packs go? Small offcuts and full sheets should not end up sharing an improvised rack simply because there is space.
Keep batch labels with the material after unpacking. If a problem appears, being able to identify the affected batch saves a lot of back-and-forth.
Check temperature and fixing details together
PVC sheets expand when heated and contract as they cool. Installation needs to accommodate that movement using the guidance for the selected product.
For a panel that changes shape after fitting, send the supplier the finished dimensions, support layout and fixing details. Include whether the location receives direct sunlight. For an outdoor project, confirm the suitability of the exact grade before placing the order.
Avoid choosing a universal expansion gap from an unrelated product sheet. The required allowance depends on the material, panel length, temperature change and installation arrangement.
Likewise, ask for guidance before changing hole sizes or loosening fasteners. The mounting system still has to hold the panel securely.
A small sample cannot settle a full-size panel question
A hand sample is useful for checking the surface, colour and basic machining response. It tells you much less about a large panel in its final frame.
For a new application, we recommend a trial using the proposed finished dimensions and support arrangement. Record the board grade, thickness, finish and installation conditions so the trial can be repeated.
If you are comparing two specifications, keep the rest of the setup the same. Changing the board, frame and fixing method together makes it difficult to understand which change helped.
Agree on the acceptance criteria before the trial. “Looks flat enough” may mean different things to purchasing, production and the end customer.
What to send your PVC foam board manufacturer
A useful enquiry includes the panel drawing, intended location, proposed finish, fixing method and photographs of any existing problem. Add the sheet specification and batch reference if available.
Goldensign has manufactured plastic sheets in China since 2004. Our PVC foam board range includes free foam, Celuka and co-extruded boards for different project requirements. Goldensign product and company information.
When contacting us, describe the finished application alongside the thickness you want to buy. A distributor stocking general-purpose sheets and a fabricator developing a large fitted panel may need different discussions.
Send Goldensign your panel dimensions and application details to discuss a suitable specification and sample trial. The aim is to make the material choice reviewable before committing to a production order.
