How PVC Free Foam Sheet Is Made | Inside a Professional PVC Foam Board Manufacturer Factory

If you’ve ever worked with signage, printing panels, or lightweight boards, you’ve probably seen PVC free foam sheet.

Light. Flat. Easy to cut. Ink goes on smoothly.
But how it’s actually made? Not everyone looks that far.

From a PVC foam board manufacturer perspective, the process is not just “mix and foam”. It’s a controlled system. Small changes in temperature, formula, or speed—can change the whole board quality.

Let’s go through it. Step by step, the way a real PVC foam board factory runs it.

Understanding PVC Free Foam Sheet First

A quick note before production.

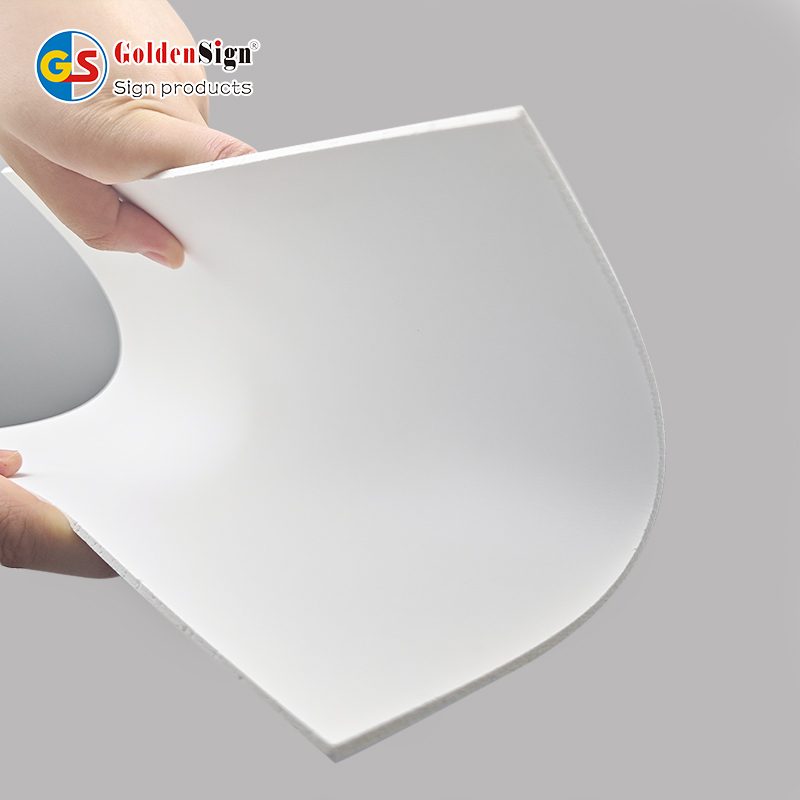

PVC free foam sheet is a type of PVC foam board with a uniform, slightly open cell structure. No heavy surface compression. That’s why:

• Lighter weight

• More flexibility

• Easier for printing and mounting

Typical thickness?
1mm to 8mm. Widely used in advertising boards, display panels, UV printing sheets.

Step 1: Raw Material Mixing

Everything starts here. Quiet step, but critical.

In a standard PVC foam board factory, materials include:

• PVC resin

• Foaming agent

• Stabilizers

• Lubricants

• Fillers (like calcium carbonate)

• Modifiers

They go into a high-speed mixer. Heat builds up slightly during mixing—not accidental. It helps materials blend evenly.

Bad mixing? You won’t see it now. You’ll see it later… as uneven bubbles, rough surface.

Step 2: Extrusion Process

The mixed powder moves into a twin-screw extruder.

Inside:

• Temperature rises gradually

• Material melts into a thick, flowing state

• Pressure builds

Not fully liquid. Not solid. Somewhere in between.

For any experienced PVC foam board manufacturer, this stage is about stability.
If plasticization is uneven, the next step—foaming—goes wrong.

Step 3: Free Foaming – Where the Structure Forms

Now the key moment.

The foaming agent decomposes under heat and releases gas.
That gas expands inside the PVC melt.

No heavy compression on the surface. That’s why it’s called free foam.

Result:

• Uniform internal cells

• Lower density

• Slightly softer surface compared to celuka boards

This structure gives PVC free foam sheet its typical properties:

• Lightweight

• Flexible (not brittle)

• Easy to cut, drill, shape

And importantly for advertising—ink-able surface. UV printing, screen printing… works well.

Step 4: Calibration and Cooling

Once the sheet exits the die, it needs to hold shape.

A professional PVC foam board factory uses:

• Cooling systems (water or air)

• Guiding and calibration units

Too much cooling too fast? Internal stress.
Too slow? Sheet may deform.

Flatness comes from here. Not from luck.

Step 5: Haul-Off and Cutting

The sheet is pulled forward at a controlled speed.

Then cut into sizes:

• Standard sheets

• Or custom dimensions

For many clients in advertising, custom sizing reduces waste. A good PVC foam board manufacturer usually supports that.

Why PVC Free Foam Sheet Works for Advertising

This is where the material fits best.

Compared to other PVC foam board types, free foam sheets offer:

• Thickness range 1–8mm → ideal for display boards

• Waterproof → no issue in humid environments

• Fire-resistant (self-extinguishing) → safer for indoor use

• Non-toxic → suitable for indoor advertising

• Flexible → less cracking during handling

• Ink-friendly surface → clean printing results

Not the hardest board. Not the densest.
But for visual applications? It does the job very well.

Choosing the Right PVC Foam Board Manufacturer

Here’s where many buyers get stuck.

Same product name. Different quality.

A reliable PVC foam board manufacturer should help you define:

• Thickness (1mm? 3mm? 5mm?)

• Density (affects rigidity and cost)

• Surface quality (important for printing)

• Color consistency

Not just selling sheets. Helping you avoid wrong specs.

Working with a Factory Like Goldensign

At Goldensign, production is not fixed to one standard.

As a long-term PVC foam board factory, we support:

• OEM & ODM services

• Custom colors (pure white, colored sheets, etc.)

• Flexible sizes and thickness

• Stable supply for bulk orders

For advertising clients, this matters. Because projects change. Requirements shift.

Sometimes you need lighter boards. Sometimes smoother surface.
A flexible PVC foam board manufacturer makes that easier.

Final Thoughts

So, how is PVC free foam sheet made?

Not complicated on paper:
mix → melt → foam → cool → cut

But in reality, every step needs control.
That’s what separates a stable PVC foam board factory from an average one.

If your application is advertising, display, printing—
choosing the right PVC foam board manufacturer is just as important as choosing the material itself.
